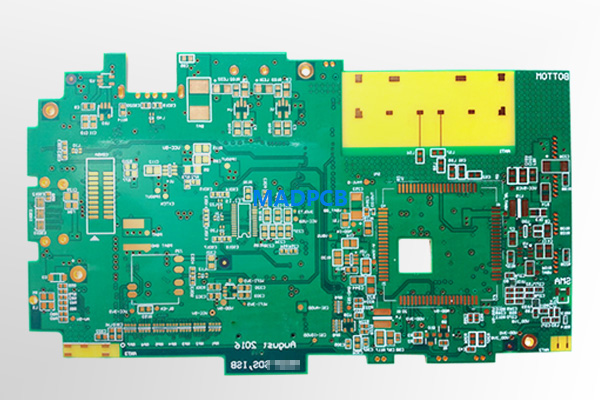

6 Layer Controlled Impedance PCB Fabrication
6 Layer Controlled Impedance PCB Fabrication
- Layer Count: 6 layers
- Material: FR-4 Tg150, 94V-0, RoHS
- Finished Board Thickness: 1.6mm +/-10%
- Solder Mask: Green x2
- Silkscreen: White x2
- Unit Size: 145.23*86.21mm
- Panel Size: N/A
- Finished Inner Copper Weight: 0.5oz
- Finished Outer Copper Weight: 1oz
- Surface Finish: ENIG (Au: 3μ”, Ni: 120-240μ”)
- Tented Vias with Soldermask: Yes
- Controlled Impedance: Yes
